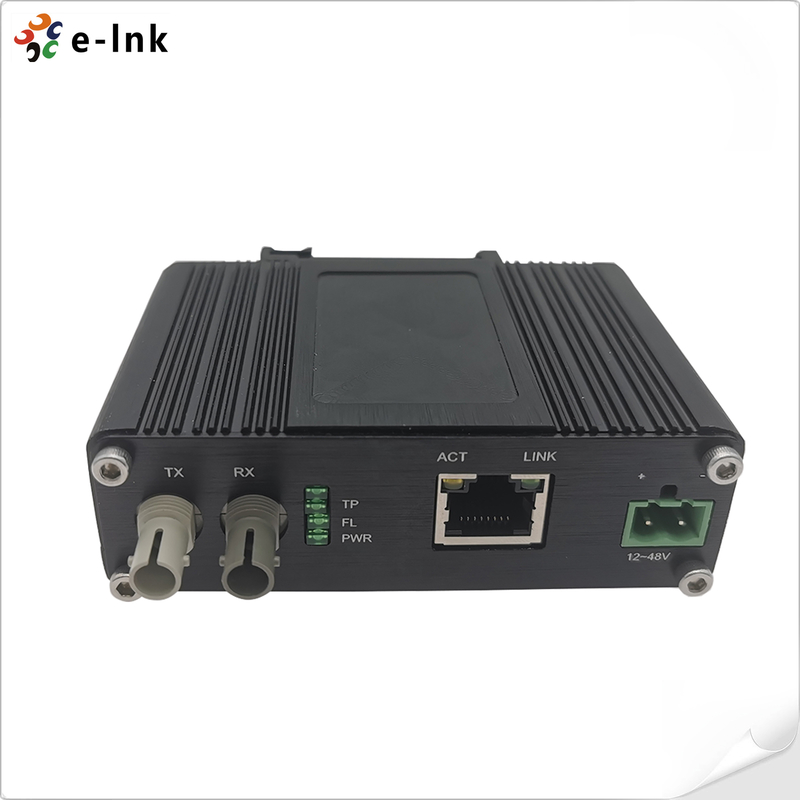

Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter
Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter
Model : LNK-IMC10FST
Overview
The E-link Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter is a specialized
industrial-grade device designed to bridge existing 10Base-T Ethernet networks to 10Base-FL
fiber optic networks, supporting both single mode and multimode fiber cables with an extended
transmission distance of up to 20,000 meters. As a Mini Industrial 10BASE-T to 10BASE-FL
Ethernet Media Converter, it stands out for its compact form factor and robust build, making
it ideal for space-constrained industrial environments.
This converter is engineered as a hardened product, featuring a wide operating temperature
range from -40°C to 75°C and a ruggedized aluminum housing—key traits that ensure reliable
performance in extreme climatic conditions, including harsh industrial sites with frequent
temperature fluctuations. The Ethernet port supports both half-duplex and full-duplex modes,
enhancing compatibility with diverse 10 Mbps Ethernet devices, while its rugged hardware
design safeguards connected equipment against the rigors of industrial settings, such as
vibration, shock, and dust ingress.
Belonging to the LNK-IMC10FST Series, this Mini Industrial 10BASE-T to 10BASE-FL
Ethernet Media Converter offers easy installation, with support for DIN rail mounting or
placement in distribution boxes, simplifying integration into existing industrial network
infrastructures. A standout feature is its ability to connect 10 Mbps Ethernet segments
to fiber segments without the need for crossover cables, eliminating the hassle of
mismatched transmit and receive cable pairs. Equipped with an intelligent switch, it
automatically senses the circuit type connected to the UTP port and configures the port
accordingly; the UTP side’s autosensing MDI/MDI-X capability further allows seamless
connection to switches or NICs using either straight or crossed cables, reducing setup
complexity.
Widely applicable in factory automation, remote industrial monitoring, and infrastructure
networks, this Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter combines
durability, flexibility, and user-friendly operation, making it a reliable solution for extending
10 Mbps Ethernet networks in challenging industrial environments.
Features
► Auto-MDI/MDIX
► Complies with 802.3 10Base-T and 10Base-FL standards
► Extends network span from up to 2km(Multi mode)
► Interoperable with other 10Base media converters, 10Base, 10Base-T NICs, hubs or switches
► Provides LEDs for easy network monitoring
► Supporting Quality of Service (QoS), ensuring the transmission of VoIP packets
► Supports 802.3x Flow control
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature.
Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE 802.3
|
|
10 Base-T
|
|
10 Base-FL
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3x Full duplex and flow control
|
|
Conversion Means:
|
Store and Forward mode or Cut-Through mode
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
Wavelength:
|
850nm
|
|
Buffer Space:
|
Built in 128Kb RAM for data buffer
|
|
Flow Control:
|
Full duplex: flow control;
Half duplex: back pressure
|
|
Cable Length:
|
50/125um or 62.5/125um Multi-mode duplex fiber optic cable for 10Base-FL
100 meters max. for UTP
2000 meters max. for fiber optic Multi-mode
|
|
Transmission type:
|
Base band
|
|
Connection switch:
|
2-position 10Base-T switch on RJ-45 side (hub or W/S)
|
|
Interface
|
|
Connector:
|
1x RJ45 10Base-T
|
|
Optical Port:
|
1 x ST 10Base-FL
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, 2-pin terminal block
|
|
Power Consumption:
|
5W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
ACT:
|
Data LINK Status
|
|
TP:
|
Ethernet Status
|
|
FL:
|
Fiber LINK Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Ordering lnformation
|
Model
|
Description
|
|
LNK-IMC10FST-MM
|
Mini Industrial 10BASE-T to 10BASE-FL Ethernet Media Converter, multi-mode, 2km, 850nm, ST
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
