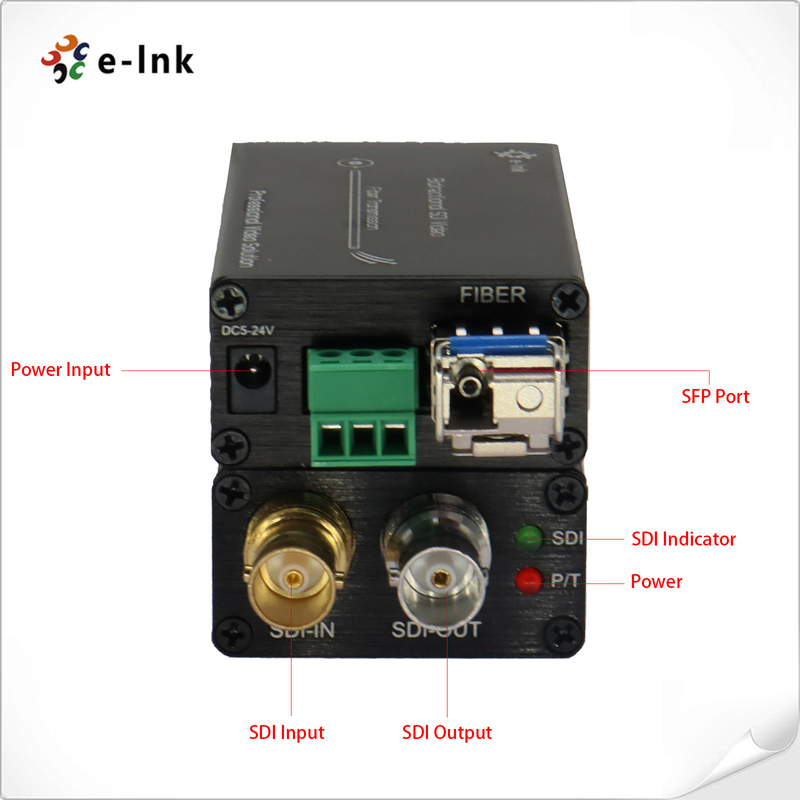

Mini Bi-directional HD/3G-SDI to Fiber Converter

Name: Mini Bi-directional HD/3G-SDI to Fiber Converter
Brand: E-link China Technology Co.,LTD
SKU: LN K-MHD-BIMM
Price: 594.00 USD
Availability: InStock

جزئیات محصول

Place of Origin: China

نام تجاری: E-link

گواهی: CE

Model Number: LN K-MHD-BIMM

سند: E-link LNK-M3G-BI20 Mini-ty....2.pdf

شرایط پرداخت و حمل و نقل

Minimum Order Quantity: 1pcs

قیمت: قابل مذاکره

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

بهترین قیمت رو بدست بیار

حالا تماس بگیرید

مشخصات

توضیحات

مشخصات

برجسته کردن:

Dimensions (LxWxH):	80 x 40 x 20 mm	Operating Temperature:	-20℃～+70℃
Shipping weight:	0.8KG/pair	Power adaptor:	DC 5~12V
Mounting Options:	Desktop

Dimensions (LxWxH):	80 x 40 x 20 mm
Operating Temperature:	-20℃～+70℃
Shipping weight:	0.8KG/pair
Power adaptor:	DC 5~12V
Mounting Options:	Desktop

توضیحات

Mini Bi-directional HD/3G-SDI to Fiber Converter

Product Advantages

► Each channel includes 4-channel audio embedded;

► Automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A);

► Automatic reclocking 270Mbit/s - 1.48Gbit/s - 3Gbit/s

► Directly compatible with HD-SDI camera systems

► Long transmission capability up to 80 km

► Hot swap and hot plug;

► Handle all Pathological patterns, fully digital non-compression broadcast level transmission;

► LED Status Indication to monitor the working conditions;

Technical Indexes

Fiber Optical interface:

Fiber interface	simplex LC
Transmission distance	550m-120Km( depend on SFP transceiver)
Wavelength	1310 nm /1550nm(depend on SFP transceiver)

Video

Ethernet

Port	10/100 Base-T, RJ-45 connector
Work mode	Full duplex/half duplex
Data Rate	10 Mbps & 100 Mbps Ethernet (Auto Adaptive)

Power Supply

Power adaptor	AC 100-240V to DC 5V 2A
Power consumption	<3W
Dimension Size	16628105MM
Shipping weight	1.1KG/pair
(include external power adaptors & package box)

Environmental

Working Temperature	-40℃～ +80℃
Storage Temperature	-40℃～ +85℃
Working Humidity	0~95%
MTBF	≥100000 hours

Overview

LNK-M3G-BI20 Series Mini-type 3G/HD-SDI Fiber Converter supports 1-Channel Bi-directional 3G/HD-SDI Video (audio embedded) via fiber optical cable. E-link 3G/HD-SDI Video over Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal. Handle all Pathological patterns, fully digital non-compression broadcast level transmission. It’s widely used in security system, video conference, broadcasting and live Events etc.

Application

Mini Bi-directional HD/3G-SDI to Fiber Converter 0

Orderinng Information

Model	Description
LN K-MHD-BIMM	Mini-type Bi-directional HD-SDI to Fiber Converter, MMF, LC Fiber Connector 500 meters, including Transmitter and Receiver, used by pairs
LNK-MHD-BI20	Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
LNK-MHD-BI40	Mini-type Bi-directional HD-SDI to Fiber Converter, SMF, LC Fiber Connector 40KM, including Transmitter and Receiver, used by pairs
