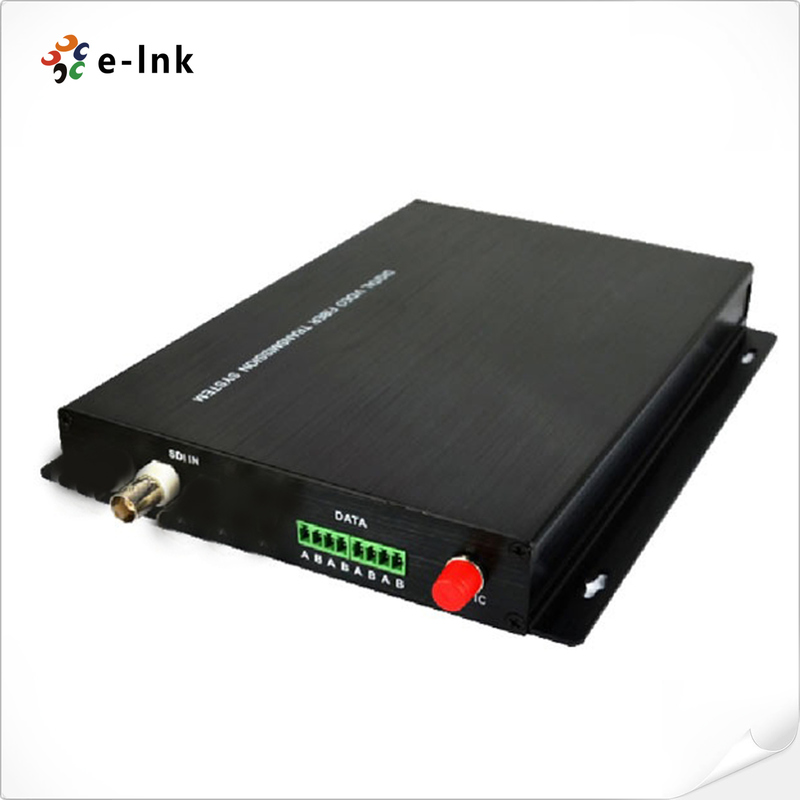

Product: SD-SDI/ASI Unidirectional Fiber Optic Transmitter/Receiver

Serial TV BNC Input

TV signal standard

SMPTE 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate

Input channel

1-8

Reflection loss

>15DB

Equilibrium

0-250m

Connector

75Ω BNC

Serial TV BNC Output (EO/OE)

Output channels

1-8

Signal level

800mV nominal

Rise/fall time

200Ps nominal

Overshoot

<10% amplitude

Reflection loss

> 15dB

Jitter

< 0.3UI

Connector

75Ω BNC

Optic Output

Channel

1　

Type

Single-mode/fiber (multimode optional)

Wavelength

CWDM wavelenth

Reflection loss

> 15dB

Jitter

< 0.3UI

Connector

FC/PC(ST/PC optional)

Power and environmental indicator

Operating temperature

-45℃～＋50℃

Pressure

1A@12VDC

Power

12W

EMI/RFI

FCC Part 15 Class A, EU EMC standard

Average time trouble-free

>100000 hours

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

Model

Description

LNK-2010-T

1-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount

LNK-2010-R

1-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount

LNK-2020-T

2-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount

LNK-2020-R

2-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount

LNK-2040-T

4-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount

LNK-2040-R

4-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount

LNK-2080-T

8-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount

LNK-2080-R

8-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount
