Industrial Ethernet Switches / Railway / EN50155
Industrial Ethernet Switches / Railway / EN50155
Industrial 8-port M12 Ethernet Switches / Railway / EN50155 Advantage
· EN50155 compliant Ethernet switch for railway applications
· Support ERPS, STP/RSTP/MSTP for network redundancy
· IGMP Snooping for filtering multicast traffic
· Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
· Port Trunking for optimum bandwidth utilization
· RADIUS,TACACS+,SNMPv3,IEEE 802.1X,HTTPS and SSH to enhance network security
· QoS (IEEE 802.1p/CoS) and ToS/DiffServ to increase determinism
· SNMPv1/v2c/v3 for different levels of network management
· RMON for efficient network monitoring and proactive capability
· Support port mirroring
· Bandwidth management prevents unpredictable network status
· Lock port function for blocking unauthorized access based on MAC address
· Automatic alarm through e-mail, relay out
· User friendly UI and command command Line Interface (CLI) for quickly configuring major managed functions
· M12 connectors to guarantee reliable operation against environmental disturbances
· Wall mounting enabled
Industrial 8-port M12 Ethernet Switches / Railway / EN50155 Overview

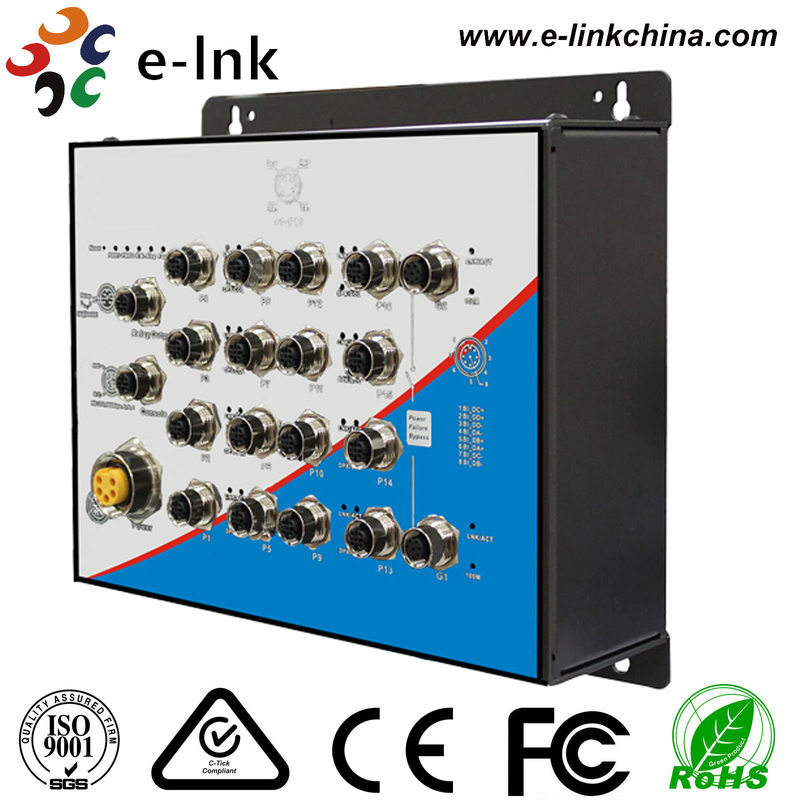

The ES118M series Ethernet switches are designed for industrial applications, such as rolling stock,
vehicle, and railway applications. It has 16x10/100Base-T(X) and 2x10/100/1000Base-T(X) ports
which is compliant with EN50155 requirement. It is specifically designed for the toughest industrial
environments. With completely support of Ethernet Redundancy protocol, ERPS and RSTP/STP can
protect your mission-critical applications from network interruptions or temporary malfunctions with
its fast recovery technology. ES118M series supports functions of network management, such as
SNMP, RMON, Port Trunking, and Port/Tag-based VLAN security. In addition, the wide operating
temperature range from -40 to 85℃ can satisfy most of operating environment. Therefore, the switch
is one of the most reliable choices for rolling stock and highly-managed Ethernet application.
Industrial 8-port M12 Ethernet Switches / Railway / EN50155 Technical Indexes
|
Protocols
|
IGMPv1/v2/v3, GMRP, GVRP, SNMPv1/v2c/v3,DHCP Server/Client, DHCP Option 66/67/82,BootP,TFTP, SNTP,SMTP, RARP, RMON, HTTP, HTTPS,Telnet, SSH, Syslog,EtherNet/IP, PROFINET,
Modbus/TCP, SNMP Inform, LLDP,IEEE 1588 PTP V2, IPv6, NTP Server/Client
|
|
MIB
|
MIB-II, Ethernet-Like MIB, P-BRIDGE MIB,Q-BRIDGE MIB, Bridge MIB,
RSTP MIB, RMON MIB Group 1, 2, 3, 9
|
|
Flow Control
|
IEEE 802.3x flow control, back pressure flow control
|
|
Switch Properties
|
Priority Queues: 4
Max. Number of Available VLANs: 64
VLAN ID Range: VID 1 to 4094
IGMP Groups: 256
MAC Table size:8K
Packet Buffer Size:1 Mbit
Jumbo Frame Size:9.6 KB
|
|
Interface
|
RJ45 ports:10/100/1000 Base-T(X) Port in M12 D-coding Auto MDI/MDIX
RJ45 ports:10/100 Base-T(X) Ports in M12 D-coding Auto MDI/MDIX
Console Port: RS-232 in M12 connector
LED Indicators:PWR,L/A,SPD
|
|
Power Requirement
|
Input Voltage:Dual 12~48VDC
Power Consumption:11 Watts
Connection: M23 connector
Overload Current Protection:Present
Reverse Polarity Protection:Present
|
|
Physical Characteristics
|
Housing:Aluminum,IP40 protection
Dimensions:170 x 196 x 75mm (6.7 x 7.7 x 2.95 in)
Weight:1400g
Installation:Field-style mounting, DIN-Rail mounting (with optional kit)
|
|
Environmental Limits
|
EMI :
FCC Part 15 Subpart B Class A, EN 61000-6-4(Industrial)
EMS:
EN 61000-6-2 (Industrial), EN 61000-4-2 (ESD) Level 4, EN 61000-4-3
(RS) Level 3, EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 4, EN 61000-4-6 (CS) Level 3, EN 61000-4-8, IEEE 1613
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
MTBF (mean time between failures):305,000 hrs
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.1D forSpanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1 for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
IEEE 802.3x for Flow Control
|
|
Warranty
|
5 years
|
Industrial Ethernet Switches / Railway / EN50155 Ordering Information
|
Model
|
Description
|
|
LNK-ES-80216_G
|
16-Port 10/100BaseT(X) 10/100/000BaseT(X) Managed Switch
|
|
Power Options
|
► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
