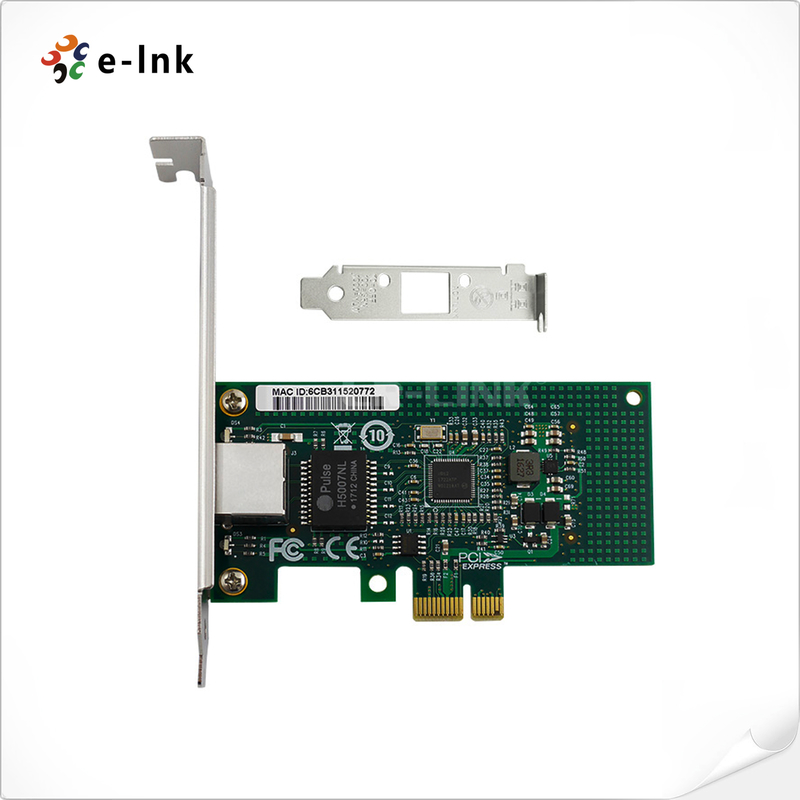

PCI-Express 10/100/1000M Gigabit Copper Network Card (Intel I210 Based)

Name: PCI-Express 10/100/1000M Gigabit Copper Network Card (Intel I210 Based)
Brand: E-link China Technology Co.,LTD
SKU: LNK-C9204CT
Price: 369.00 USD
Availability: InStock

جزئیات محصول

محل منبع: چین

نام تجاری: E-link

گواهی: ROHS,FCC,CE

شماره مدل: LNK-C9204CT

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: 1 قطعه

قیمت: قابل مذاکره

جزئیات بسته بندی: بسته بندی کارتن

زمان تحویل: 3-12 روز کاری

شرایط پرداخت: T/T ، Western Union ، MoneyGram ، PayPal

قابلیت ارائه: 1000 قطعه در ماه

بهترین قیمت رو بدست بیار

حالا تماس بگیرید

مشخصات

توضیحات

مشخصات

برجسته کردن:

توضیحات

PCI-Express 10/100/1000M Gigabit Copper Network Card (Intel I210 Based)

Advantages

► Single Port 10/100/1000Mbps adapter

► PCI Express (PCIe) 2.1 (2.5 GT/s) x1 lane

► RJ45 Connectivity

► Low-cost, low-power

► WOL, PXE Support

► IEEE 802.3az - Energy Efficient Ethernet (EEE)

► Advanced Power Management (APM) Support

► Innovative power management features

► MSI, MSI-X support

► Excellent small packet performance for network appliances

► Low profile and full-height bracket

► MAC Power Management controls

► Low Power Link Up - Link Speed Control.

Overview

LNK-C9204CT is PCI Express x1 Gigabit Ethernet desktop network adapter based on Intel I210 solution. The Gigabit adapter adopts a compact design and does not reduce the performance of the NIC.

The adapter adopts Ethernet power management technologies such as Energy Efficient Ethernet and DMA Merge, and has 4 transmit and 4 receive queues, error correction memory protection and other technologies to improve the reliability of data transmission. Manage latency data packets efficiently by combining parallel and pipe-lined logical architectures.

The adapter has high-performance network data transmission on the machine bus architecture, compatible with Ethernet and fast Ethernet to greatly reduce customer deployment and training costs.

Technical Indexes

Networking
Standards:	IEEE 802.3 10BASE-T
	IEEE 802.3u 100BASE-TX
	IEEE 802.3ab 1000BASE-T
	IEEE 802.3x Flow control auto-negotiation
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 1588 protocol and 802.1AS implementation
	IEEE 802.1p Quality of Service priority control
	PCI-E 1.0 complaint
NOS Software Support:	Windows 2000
	Windows XP 32-bit (64-bit)
	Windows Server 2003 32-bit ( 64-bit) Windows Vista 32-bit (64-bit)
	Windows 7 32-bit (64-bit)
	Windows 8 32-bit (64-bit)
	Windows 10 32-bit (64-bit)
	Windows Server 2008 32-bit (64-bit) Windows Server 2008 R2 32-bit (64- bit)
	Windows Server 2012 32-bit (64-bit) DOS, Novell ODI
	Novell Netware 5.x, 6.x
	Linux 2.4 series kernel and 2.6.x, 3.x
	FreeBSD 7.x and later
	UnixWare / OpenUNIX 8
	Sun Solaris x86
	VMWare
Controller:	Intel I210
Transmission rate	10/100/1000Mbps
Twisted-pair	1000BASE-T: Cat 5e or higher up to 100m 100BASE-Tx: Cat5/5e/6 or higher up to 100m 10BASE-T: Cat3/4/5/5e/6 or higher up to 100m
Jumbo Frame Support:	Up to 9.5 KB
Network Virtualization	PXE
Interface
Connector:	1x RJ45
LED Indicators
1000Mbps/s	Yellow Link and Green Act
100Mbps/s	Green Link and Green Act
10Mbps/s	Not illuminate
Environmental
Operating Temperature:	0°C to 55°C (32°F to 131°F)
Storage Temperature:	-25°C to 70°C (-13°F to 158°F)
Relative Humidity:	5% to 95% non-condensing

Ordering Information

Model	Description
LNK-C9204CT	PCI Express x1 Single Port Copper Gigabit Ethernet Desktop Adapter Intel I210AT Based
