Micro Mini 4K HDMI Fiber Extender
Micro Mini 4K HDMI Fiber Extender
Micro Mini 4K HDMI Fiber Extender Advantage
► HDMI 1.4a and HCCP1.2 Support
► Uncompressed transmission, No delay, No losses
► DDC CEC HPD Signal Support
► Data rate up to 10.3Gbps
► Transmit up to 80km over fiber cable
► Supports all modes up to 4K*2K@30Hz Resolution
► USB-C Connector for Power Input
► Hot-Pluggable, EMI/RFI Resistant
► Miniature form factor for ease of use and installation
► Operating Case Temperature: -10~60°C
Micro Mini 4K HDMI Fiber Extender Overview
The LNK-MH4K Series 4K HDMI Fiber Extender are designed to support transmission
of an uncompressed lossless HDMI 1.4a signal over optical fiber up to distances of 80
km, at a resolution of 4Kx2K.
The Transmitter converts an HDMI signal to a single 10Gb/s serial data stream for
transmission over optical fiber. The Receiver converts the serial data back to an HDMI
signal. The transceivers are RoHS compliant and lead-free per requirements in Europe
and China. This product is ideal for large-screen display, conferencing systems and
home entertainment and so on. The device has the ability of anti-interference, to ensure
the stability of the signal.
Micro Mini 4K HDMI Fiber Extender Technical Indexes
|
Type of Extender
|
Fiber Transmitter for HDMI signal over Optical Fiber Cable
|
|
Input Signals
|
HDMI
|
|
Connector
|
Female HDMI type A
|
|
Signal Support
|
HDMI 1.4a HDMI format standard and HDCP compliant
|
|
Video Support
|
1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz
|
|
Audio Support
|
Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
|
|
Chroma Subsampling
|
Color space 420, 400
|
|
Dynamic EDID
|
Plug & Play, no need to learn
|
|
Fiber Connector
|
SFP/LC
|
|
Bandwidth
|
10.3Gbps
|
|
Transmission Distance
|
300m (Over OM3 Fiber)
|
|
|
Up to 80km (Over Single-mode Fiber)
|
|
Operating Temperature
|
-10 to + 60°C
|
|
Storage Temperature
|
-20 to + 85°C
|
|
Humidity
|
5% to 90% RH (non-condensing)
|
|
MTBF
|
100,000 hours
|
|
Dimension (WxDxH)
|
3.07 x 1.06 x 0.69in (78x27x17mm)
|
|
Weight
|
50g / 0.11 lb
|
Micro Mini 4K HDMI Fiber Extender Ordering Information
|
Model
|
Description
|
|
|
LNK-MH4K-MM
|
Micro Mini HDMI Fiber Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, USB Power Input
|
|
LNK-MH4K-S20
|
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, USB Power Input
|
|
LNK-MH4K-S40
|
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, USB Power Input
|
|
LNK-MH4K-80
|
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input
|
|
LNK-MH4K-S80
|
Micro Mini HDMI Extender: 1-Ch HDMI 1.4a Video Signal(4K*2K), Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, USB Power Input
|

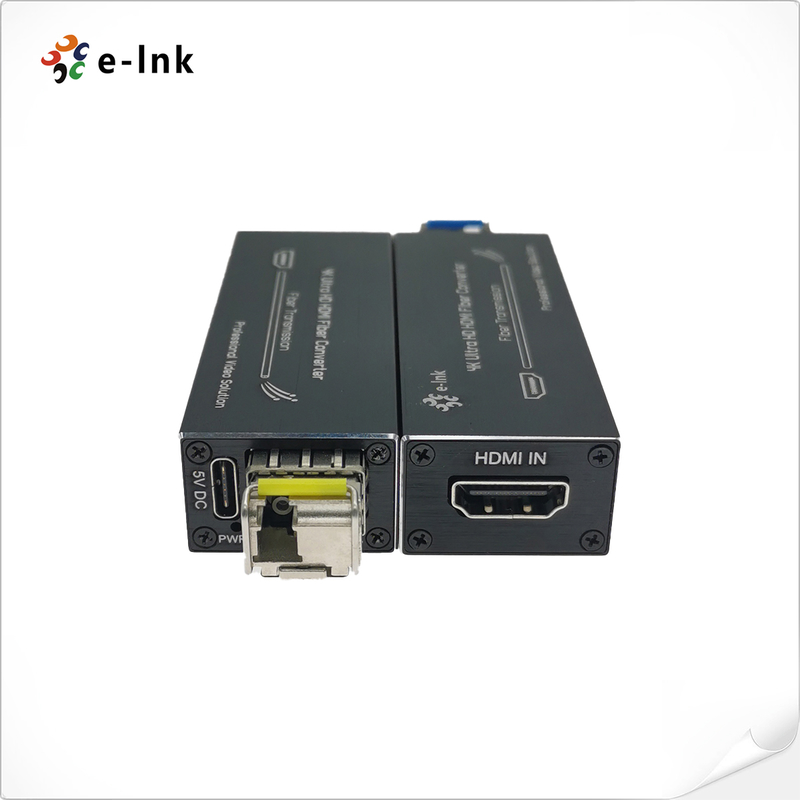

Micro Mini 4K HDMI Fiber Extender Picture
Micro Mini 4K HDMI Fiber Extender Application
