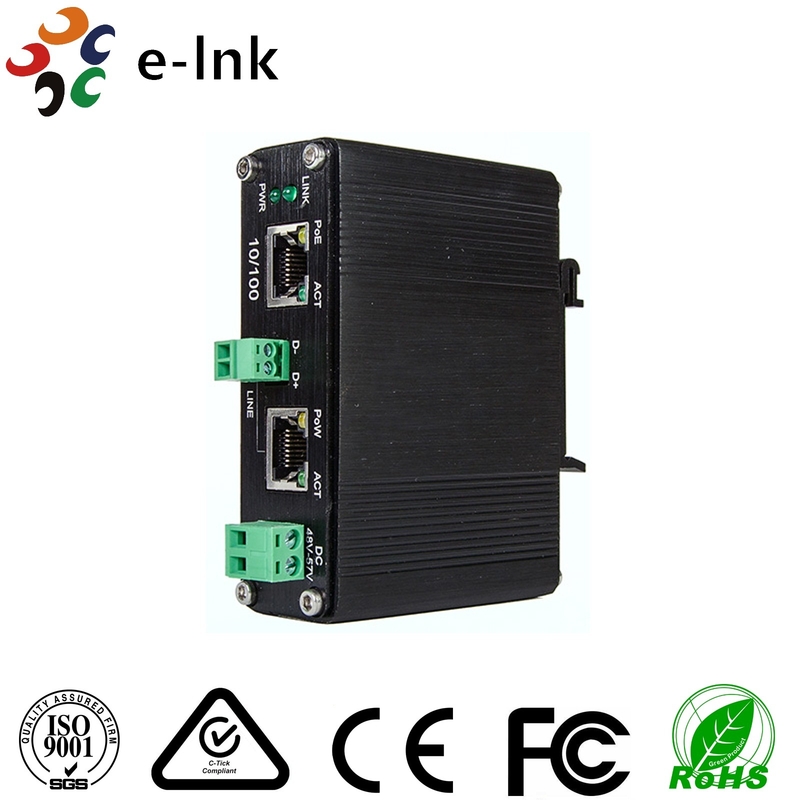

Industrial 10/100Base-TX Ethernet over UTP with PoE+ & PoW Extender

Name: Industrial 10/100Base-TX Ethernet over UTP with PoE+ & PoW Extender
Brand: E-link China Technology Co.,LTD
SKU: LNK-UP1100-T
Price: 369.00 USD
Availability: InStock

جزئیات محصول

Place of Origin: China

نام تجاری: E-link

گواهی: ISO9001, CE, FCC, RoHS

Model Number: LNK-UP1100-T

سند: E-link Industrial DIN-Rail ....0.pdf

شرایط پرداخت و حمل و نقل

Minimum Order Quantity: 1pcs

قیمت: قابل مذاکره

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

بهترین قیمت رو بدست بیار

حالا تماس بگیرید

مشخصات

توضیحات

مشخصات

برجسته کردن:

Working Humidity:	0~95%	Working Temperature:	-10°C to 60°C (14°F to 140°F)
Dimensions (W x D x H):	114 × 72 × 31 mm	Weight:	0.25kg
Relative Humidity:	5% to 90% non-condensing	MTBF:	> 100,000 hrs

Working Humidity:	0~95%
Working Temperature:	-10°C to 60°C (14°F to 140°F)
Dimensions (W x D x H):	114 × 72 × 31 mm
Weight:	0.25kg
Relative Humidity:	5% to 90% non-condensing
MTBF:	> 100,000 hrs

توضیحات

Industrial 10/100Base-TX Ethernet over UTP with PoE+ & PoW Extender

Product Advantages

► PoE+(30W) and Power over Wire

► IEEE802.3af/802.3at Compliant

► Data Rate up to:90Mbps (Downlink), 90Mbps (Uplink)

► Max.Distance:600m over Cat5e cable

► Accept 48~57VDC external power input or PoE power input from RJ45 port(Receiver side)

► Support DIN-Rail & Wall Mount installation

► -10°C to 60°C (14°F to 140°F) operating temperature

Overview

The LNK-UP1100 Series product provides Ethernet Extension of 1-CH 10/100Base-TX over UTP cable. LNK-UP1100 can extend the distance to 600 meters (with PoE) or 900 meters (no PoE) using a UTP cable. LNK-UP1100 provides a wide operating temperature range from -10°C to 60°C(14°F to 140°F), making it suitable for harsh operating environments.

Technical Indexes

Ethernet
Standards	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Ethernet
Connector	1 × RJ45
Cabling	Cat5 or above
Maximum Distance	100m
UTP
Connector	1 × RJ45
Cabling	Cat5 or above
Distance	Up to 600m on Cast5e Cable
Data Rate
Downlink	90Mbps (Max.)
Uplink	90Mbps (Max.)
Technology	Power Line Communication (PLC)
Electrical and Mechanical
Input Power	48~57VDC (Terminal Block) or IEEE802.3at PD (for LNK-UP1100P-R only)
Power Consumption	8W Max. (PoW not in use)
Power Consumption	60W Max. (PoW in use)
Protection
Reverse Polarity	Present
Power Input Overload	Present
LED Indicators
Power	Power Status
Ethernet	SPD, LINK/ACT, PoE (Transmitter)
Shielded Twisted Pair	LINK (Transmitter) / READY (Receiver) / PoW (Receiver) / ACT
PoE
Standard	IEEE802.3af/at
Port	RJ45
Max.Power	25.5W Max. at RX (Powered Device)
Max.Power	30W Max. at TX (Power sourcing Equipment)
Dimensions (W x D x H)	114 × 72 × 31 mm
Weight	0.25kg
Casing	Aluminum case
Mounting Options	DIN-Rail or Wall Mount
Environmental
Operation Temperature	-10°C to 60°C (14°F to 140°F)
Storage Temperature	-40˚C to 85˚C (-40˚F to 185˚F)
Relative Humidity	5% to 90% non-condensing
MTBF	> 100,000 hrs
Regulatory Approvals
ISO9001
FCC Part 15 Class A
EN55022 Class A
Surge Protection
RJ45: 1KV
BNC: 2KV
Power: 500V

Ordering information

Ethernet over UTP Extender with PoE
Model	Description
LNK-UP1100P-T	Transmitter of 10/100Base-TX (PoE+) Ethernet over UTP with PoW
LNK-UP1100P-R	Receiver of 10/100Base-TX (PoE+) Ethernet over UTP with PoW
Mounting Options	► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options	► 76.8W/1.6A 48VDC DIN-Rail Power Supply.
Power Options	► Power Supply is to be purchased separately
Ethernet over UTP Extender without PoE
Model	Description
LNK-UP1100-T	Transmitter of 10/100Base-TX Ethernet over UTP
LNK-UP1100-R	Receiver of 10/100Base-TX Ethernet over UTP
Mounting Options	► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
Power Options	► 12W/1 A 12VDC Power Supply
