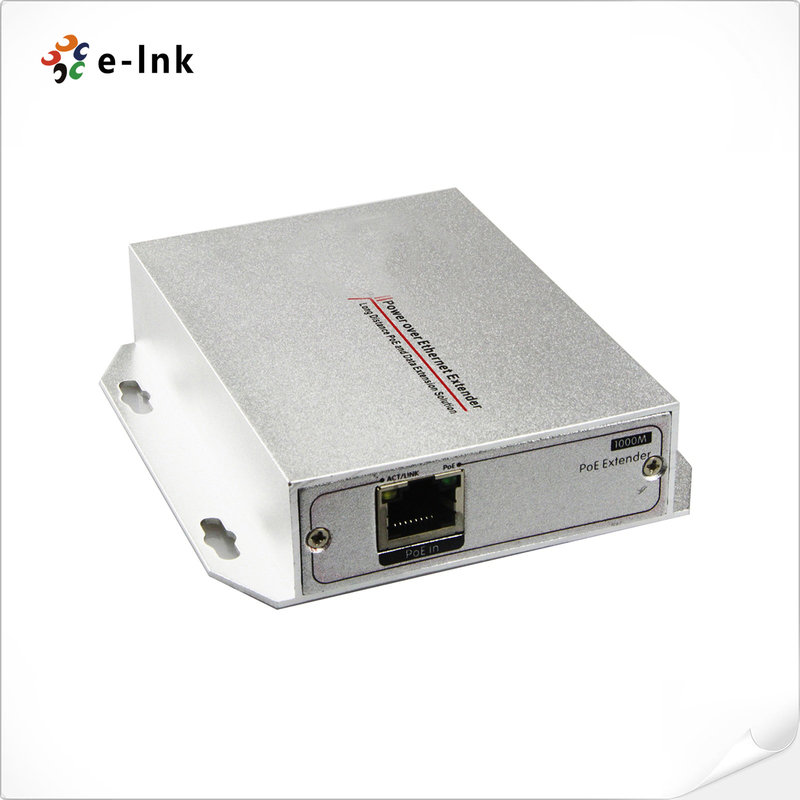

10/100/1000M PoE Extender 15.4W

Name: 10/100/1000M PoE Extender 15.4W
Brand: E-link China Technology Co.,LTD
SKU: LNK-GPoE-E1
Price: 57.00 USD
Availability: InStock

جزئیات محصول

Place of Origin: China

نام تجاری: E-link

گواهی: FCC Class A, CE, RoHS

Model Number: LNK-GPoE-E1

سند: E-link LNK-GPoE-E1 PoE Exte....0.pdf

شرایط پرداخت و حمل و نقل

Minimum Order Quantity: 1pcs

قیمت: قابل مذاکره

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

بهترین قیمت رو بدست بیار

حالا تماس بگیرید

مشخصات

توضیحات

مشخصات

برجسته کردن:
                                                                                                                                                                                                                                                                                                                                                                                                      1000M PoE Extender,10/100/1000M PoE Extender,15.4W 10/100/1000M PoE Extender, 10/100/1000M PoE Extender, 15.4W 10/100/1000M PoE Extender


MAC Address Table:	1K	Bandwidth:	8Gbps
PoE Port Power:	15.4W	Product Size:	74.5x103.5x25.5mm
Warranty:	1 year warranty	Operating temperature:	0 to 55° C;

MAC Address Table:	1K
Bandwidth:	8Gbps
PoE Port Power:	15.4W
Product Size:	74.5x103.5x25.5mm
Warranty:	1 year warranty
Operating temperature:	0 to 55° C;

توضیحات

10/100/1000M PoE Extender 15.4W

Industrial Gigabit 100W 802.3bt PoE++ Injector (12~48VDC)

Product Advantages

l Complies with IEEE 802.3af Power over Ethernet

l Extends the range of PoE an additional 100 meters

l Forwards both Ethernet data and PoE power to remote devices

l Automatically detects and protects PoE equipments from being damaged by incorrect installation

l Multiple units, daisy-chain installation support

l No external power cable required for installation

l Compact size, Wall-Mountable design

l Plug-and-Play

Overview

LNK-GPoE-E1 is a simple device which can extend the 100m standard data transmission to 200m through CAT5e/6 UTP cable, by just plug and play but no additional power supply or set up required. It offers you great flexibility to extend the distance of PoE network to triple, quadruple further in length or more. And this device supports forwards both Ethernet data and PoE power to remote devices.

Technical Indexes

Product Name	10/100/1000M PoE Extender 15.4W - Extend 100 Meters
Product Model	LNK-GPoE-E1
Description	10/100/1000M PoE extender, extends the data transmission from 100m to 200m
Connector Type	1x RJ45 PoE input port; 1x RJ45 PoE output port
Network Medium	Cat5 or more UTP(≤100 meter)
Bandwidth	8Gbps
MAC Address Table	1K
Network Protocol	IEEE 802.3i 10BASET; IEEE 802.3u 100BASET; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI; IEEE 802.3af
PoE Port	1x RJ45 PoE input port; 1x RJ45 PoE output port
PoE Port Power	15.4W
PoE Standard	IEEE802.3af
PoE Power Supply Type	Default: end-span(1/2+, 3/6-) . Optional: Mid-span(4/5+, 7/8- )
Certifications	FCC Class A, CE, RoHS
LED Display	ACT/LINK: Network status , PoE: PoE working status
Product Size	74.5x103.5x25.5mm
Working Environment	Operating temperature: 0 to 55° C; Storage temperature: -20 to 75°C; Working Humidity: 10%～90%, non-condensing
Warranty	1 year warranty
