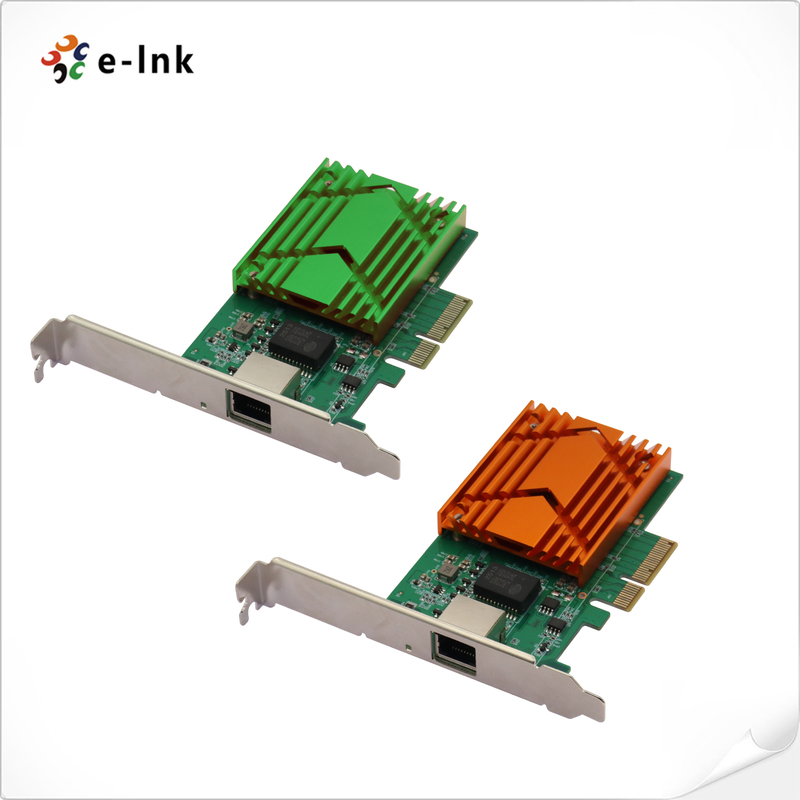

PCIe x4 Single-port RJ45 10G Ethernet Network Adapter

جزئیات محصول

Place of Origin: China

نام تجاری: E-link

گواهی: CE

Model Number: LNK-NIC-10GE

سند: E-link LNK-NIC-10GE 10G Eth....0.pdf

شرایط پرداخت و حمل و نقل

Minimum Order Quantity: 1pcs

قیمت: 69$

Packaging Details: Industrial PoE Switch Standard Carton Packaging

Delivery Time: 7-10 working days

Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal

Supply Ability: 100000PCS/Month

بهترین قیمت رو بدست بیار
حالا تماس بگیرید
مشخصات
برجسته کردن:
Power Consumption:
4.7W
Bus Type:
PCIe v3.0 x4,compatible with x8, x16
Connector:
1*10G RJ45
Size:
125 x 125 x 20 mm
Weight:
90g
Power Consumption:
4.7W
Bus Type:
PCIe v3.0 x4,compatible with x8, x16
Connector:
1*10G RJ45
Size:
125 x 125 x 20 mm
Weight:
90g
توضیحات
PCIe x4 Single-port RJ45 10G Ethernet Network Adapter
PCIe x4 Single-port RJ45 10G Ethernet Network Adapter

 Advantages


► PCIE x 4 Hardware Interface.

► Support systems: Windows, Linux, Ubuntu, etc

► Windows 7/8/8.1/10

► Windows Server 2008 R2/2012 R2/2016 R2/2019 R2

► Linux Stable Kernel version 2.6.32/3.x/4.x or later

► Linux CentOS/RHEL 6.5 / 7.x or later

► Ubuntu 14.x/15.x/16.x or later

► VMware ESX/ESXi 4.x/5.x/6.x or later

► 10/100/1000M/2.5G/5G/10Gbps data rate

 Overview


LNK-NIC-10GE is a PCI Express x4 single port 10 Gigabit Ethernet network adapter based on the xxx chip solution. It is also compatible with PCle x8 and x16 channels. A high-performance, five rate NIC adapter that integrates PCle, MAC, and PHY to provide power and space-efficient connectivity to client systems. The PCle x4 universal interface gives this product great flexibility.



 Application


PCIe x4 Single-port RJ45 10G Ethernet Network Adapter 0


 Technical Indexes




Transmission medium

Copper

Copper Type

10GBase-T:Cat 7 or higher up to 30m

5GBase-T:Cat 7 or higher up to 30m

2.5GBase-T:Cat 6A or higher up to 100m

1GBase-T:Cat 6 or higher up to 100m

100MBase-T:Cat 6 or higher up to 100m

Baffle Height

Half & Full height

Power Consumption

4.7W

OS Support

Windows 7/8/8.1/10

Windows Server 2008 R2/2012 R2/2016 R2/2019 R2

Linux Stable Kernel version 2.6.32/3.x/4.x or later

Linux CentOS/RHEL 6.5 / 7.x or later

Ubuntu 14.x/15.x/16.x or later

VMware ESX/ESXi 4.x/5.x/6.x or later

Bus Type

PCIe v3.0 x4,compatible with x8, x16

Data rate per port

10/100/1000M/2.5G/5G/10Gbps data rate

Connector

1*10G RJ45

Standards compliant

IEEE 802.3an 10 Gbit/s Ethernet over unshielded twisted pair

IEEE 802.3bz 2.5/5GBASE-T

IEEE 802.3ab 1000BASE-T Gigabit Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.1Q VLANs

IEEE 802.3x Full Duplex and flow contro

IEEE 802.3az -

Energy Efficient Ethernet (EEE)

iSCSI

No

WoL

No

Jumbo Frames

Yes

DPDK

Yes

PXE

Yes

FCoE

No

Operating Temperature

0to 55(32to 131)

Storage Temperature

-40to 70(-40to 158)

Storage Humidity

Maximum: 90% non-condensing relative humidity at 35

Size

125 x 125 x 20 mm

Weight

90g

LED indication

Power: Light on when power on;

LNK/ACT: Light on when connected, light blinks when transfer data.


 Ordering Information


Model

Description

LNK-NIC-10GE

PCIE x4 Single-port RJ45 10G Ethernet Network Adapter
