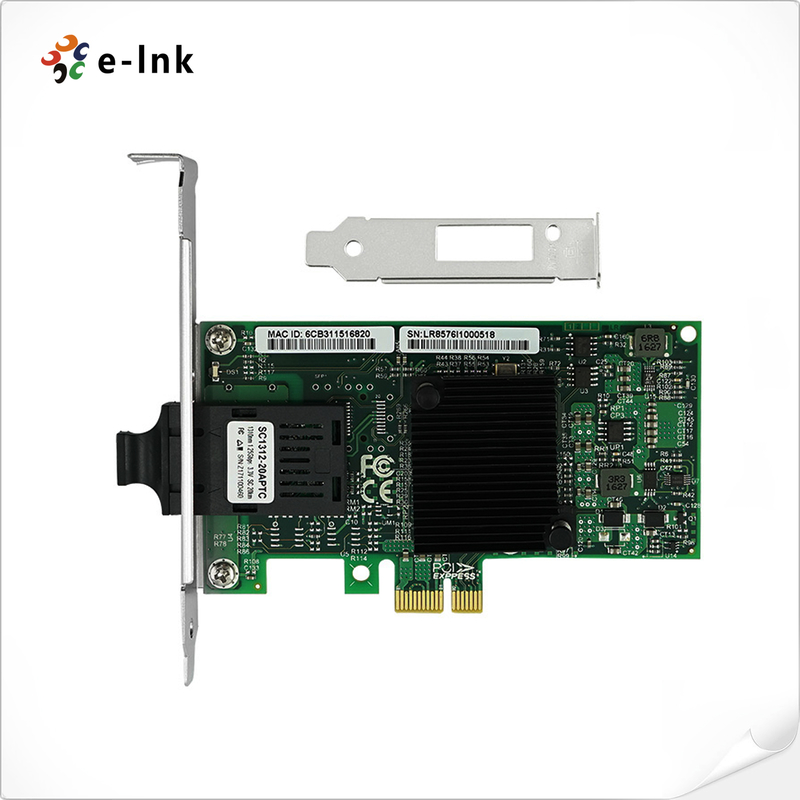

Gigabit Ethernet Fiber PCI-Express Network Adapters (Intel 82576 Based)

Networking

Standards:

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-SX/LX

IEEE 802.3x Flow control auto-negotiation

IEEE 802.1q VLAN tagging

GVRP VLAN registration protocol

IEEE 802.1p Quality of Service priority control

PCI-E 1.0 complaint

ACPI 2.0 power manage functions

NOS Software Support:

Windows 2000

Windows XP 32-bit (64-bit)

Windows Server 2003 32-bit ( 64-bit) Windows Vista 32-bit (64-bit)

Windows 7 32-bit (64-bit)

Windows 8 32-bit (64-bit)

Windows 10 32-bit (64-bit)

Windows Server 2008 32-bit (64-bit) Windows Server 2008 R2 32-bit (64- bit)

Windows Server 2012 32-bit (64-bit) DOS, Novell ODI

Novell Netware 5.x, 6.x

Linux 2.4 series kernel and 2.6.x, 3.x

FreeBSD 7.x and later

UnixWare / OpenUNIX 8

Sun Solaris x86

VMWare

Controller:

Intel82576EB

Transmission rate

1000Mbps

Jumbo Frame Support:

Up to 9.5 KB

Network Virtualization

VXLAN, MACinUDP, NVGRE, IPinGRE

Interface

Connector:

1x RJ45

Optical Port:

1 x 1000M Fiber (SC (default), LC, ST, MT-RJ)

LED Indicators

Link/ACT

1000Mbps/s:Link Green constant, ATC Yellow blink

Environmental

Operating Temperature:

0°C to 55°C (32°F to 131°F)

Storage Temperature:

-25°C to 70°C (-13°F to 158°F)

Relative Humidity:

5% to 95% non-condensing

Advantages

Use the 6-layer PCB, double copper thickness,5OZ heavy gold plate Optimize designation, improved the distribution line and integral network arrangement

Use the high-power control

Use the USA Marvell original photoelectric controller

Improved the functions and quality
